Pneu-tex integrates safety into apparel and discreetly protects those prone to injury from falls. Within milliseconds of detection, the smart jacket inflates to cushion the impact, preventing injuries.
A large part of my work focuses on sustainability and the environment. Pneu-tex allowed me to take a human-centred design approach and explore the process of designing through making. I was able to play with unfamiliar materials, learn new fabrication techniques and the process of making a garment.
Due to the COVID-19 outbreak, the scope of the project focuses largely on the design of the product whilst the technical components have remained as prototypes and concepts supported by research. Falls, undoubtedly, will be a problem we face as we age. It has been incredibly humbling to engage elders during these unprecedented times and to have the opportunity to design for our future selves.
From exercise therapy to walking canes, there is a range of products and services to prevent and protect one from falls. This includes a series of hip protection devices. However, their bulkiness and appearance make them some of the least desirable products. In contribution to existing work, Pneu-tax applies human-centred design principles to personal fall protection. The result is an outdoor jacket that is minimal and smart. By merging performance with lifestyle, Pneu-tex aims to remove the stigma of fall protection products by creating something accessible and appealing to all people and ages. Protection should not compromise aesthetics.

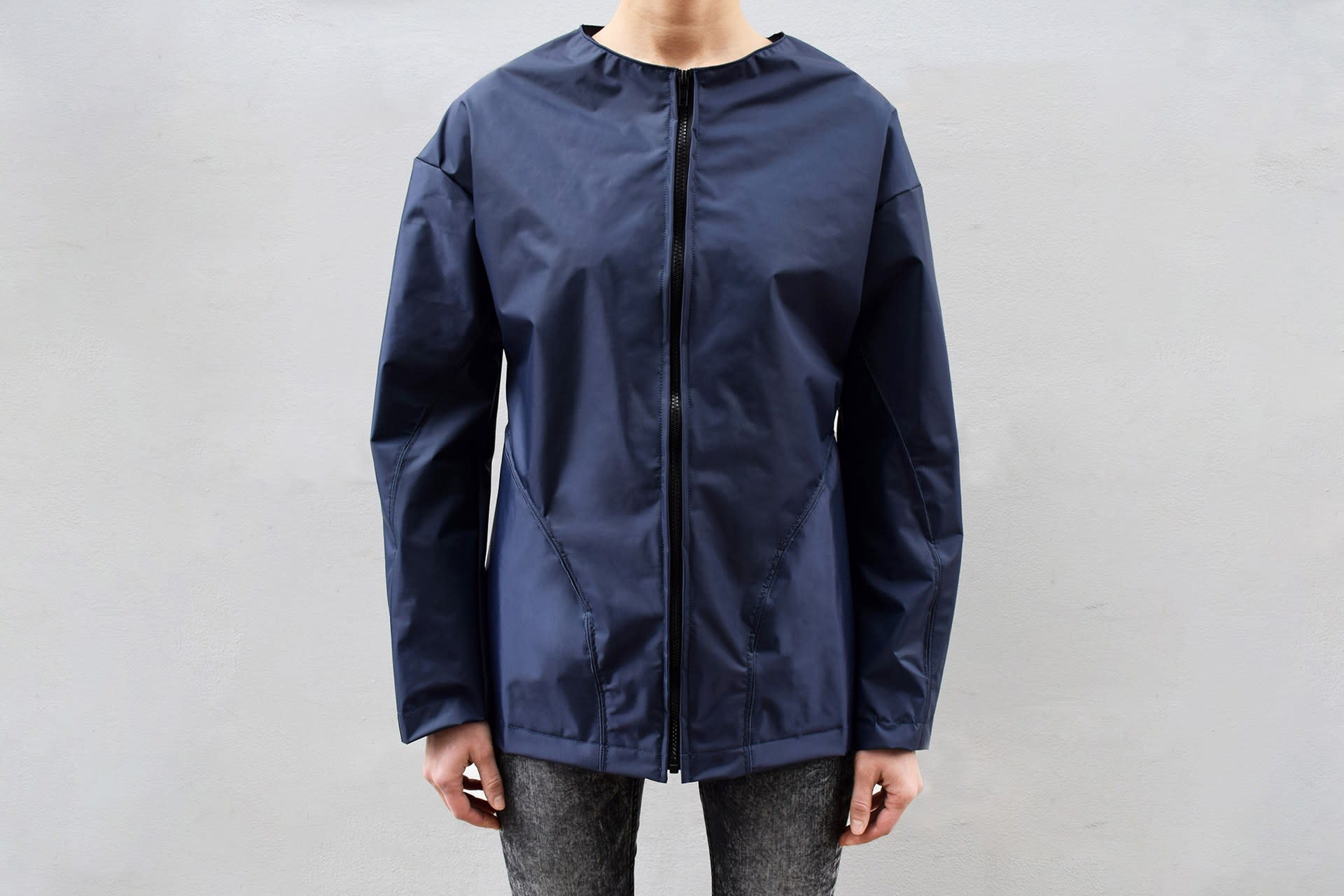

Pneu-tex — Protection should not compromise aesthetics. Pneu-tex is designed to look like an ordinary outdoor jacket.

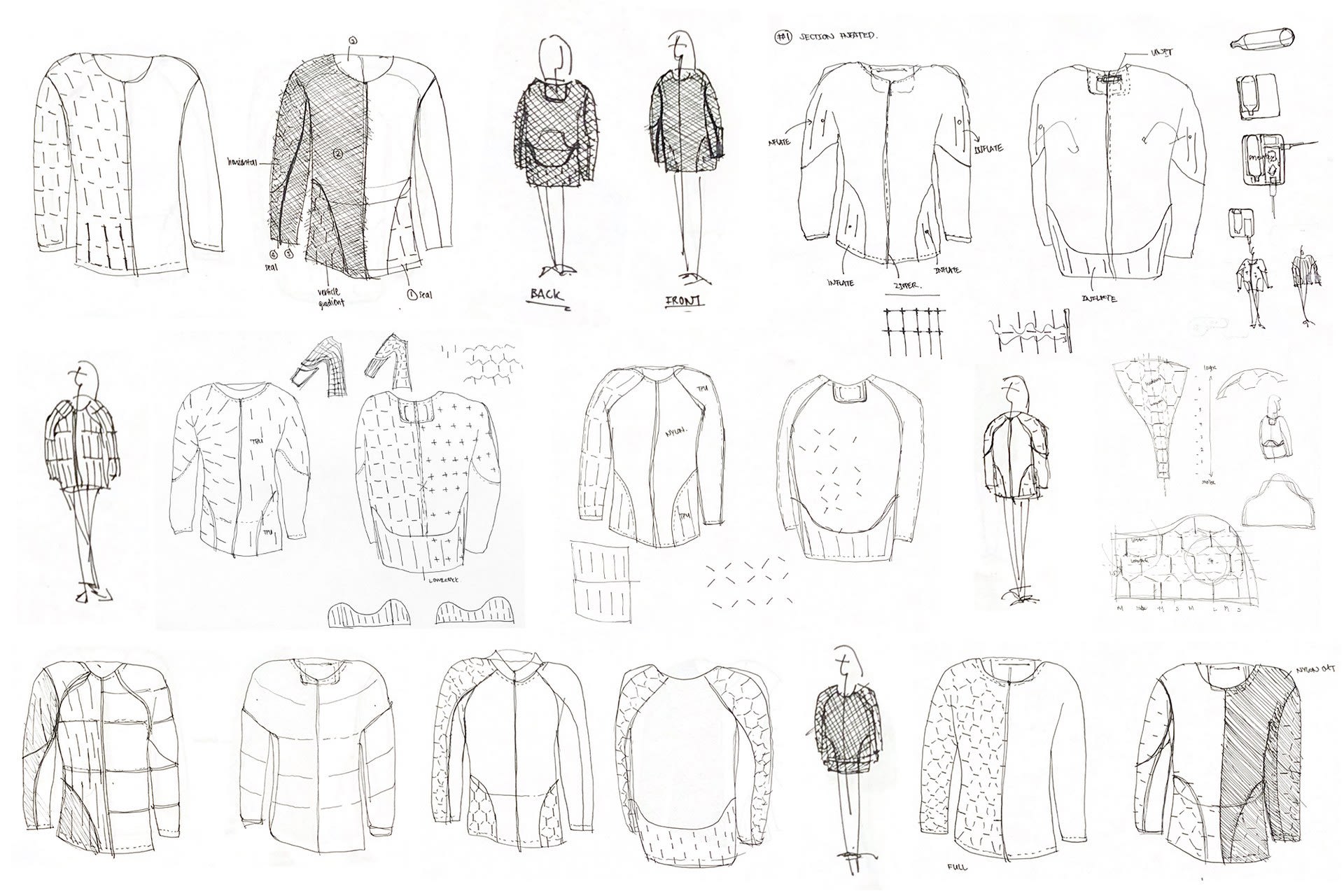

Sketches — The design of was inspired by athleisure and utilitarian fashion styles.

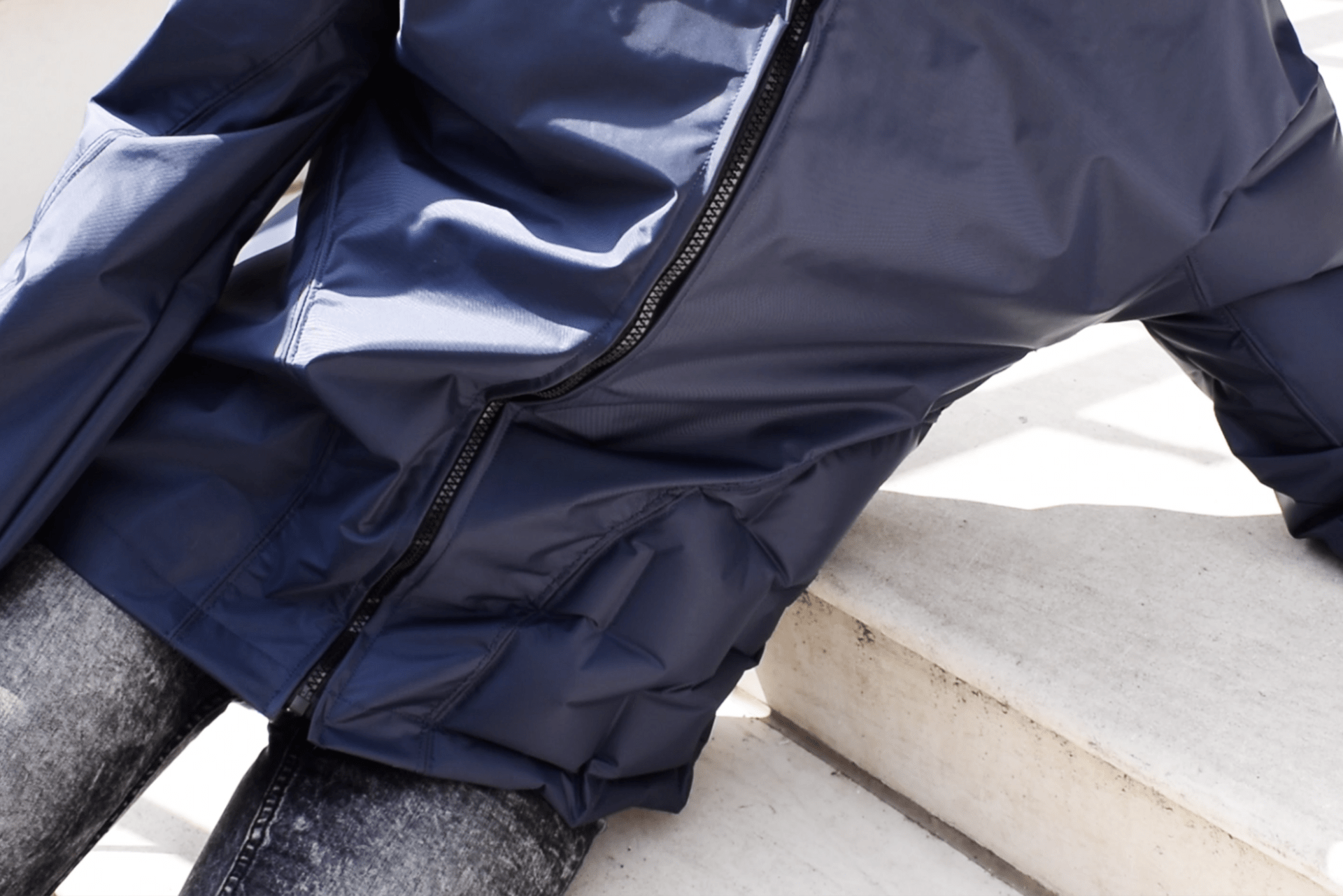

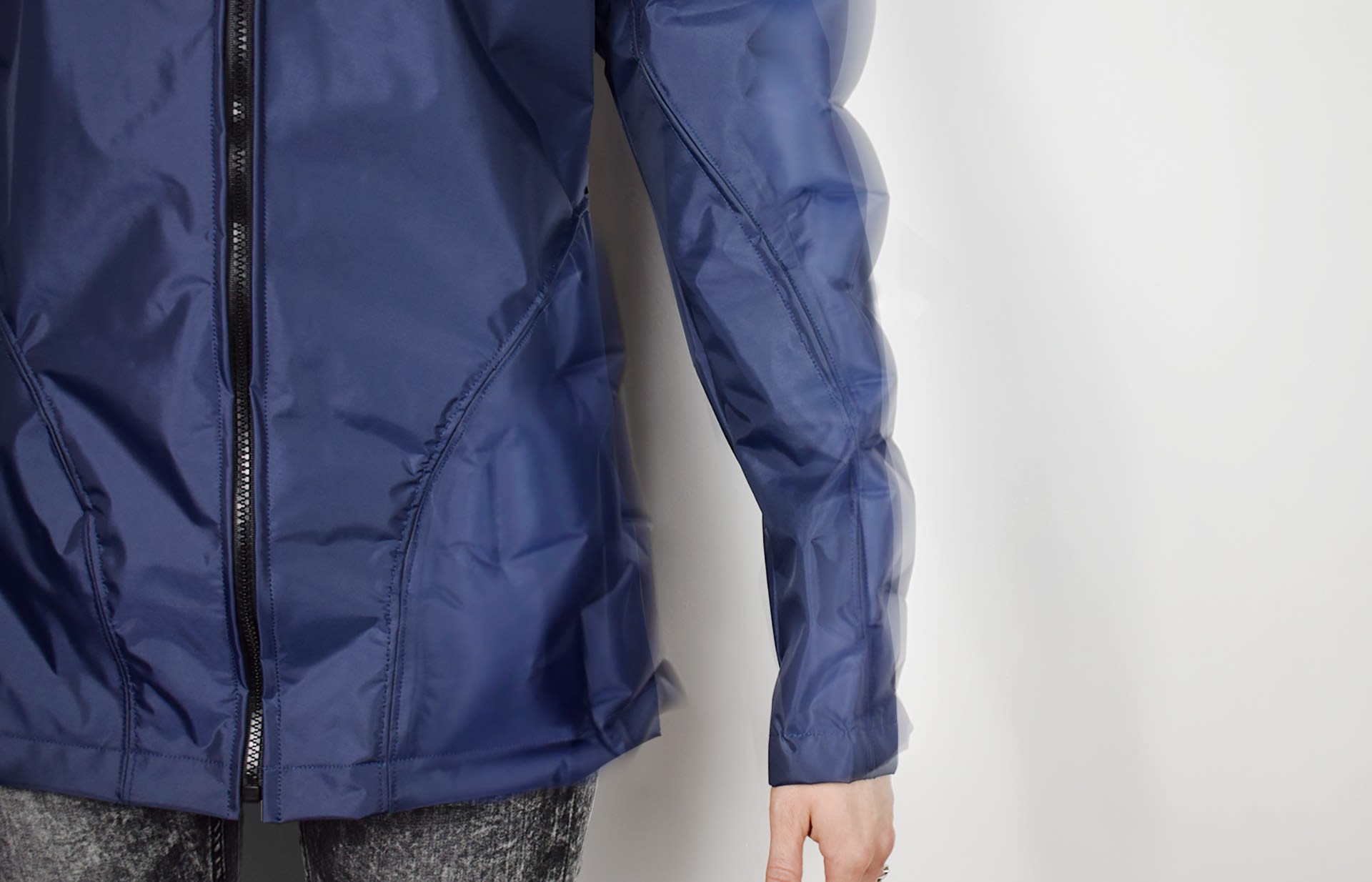

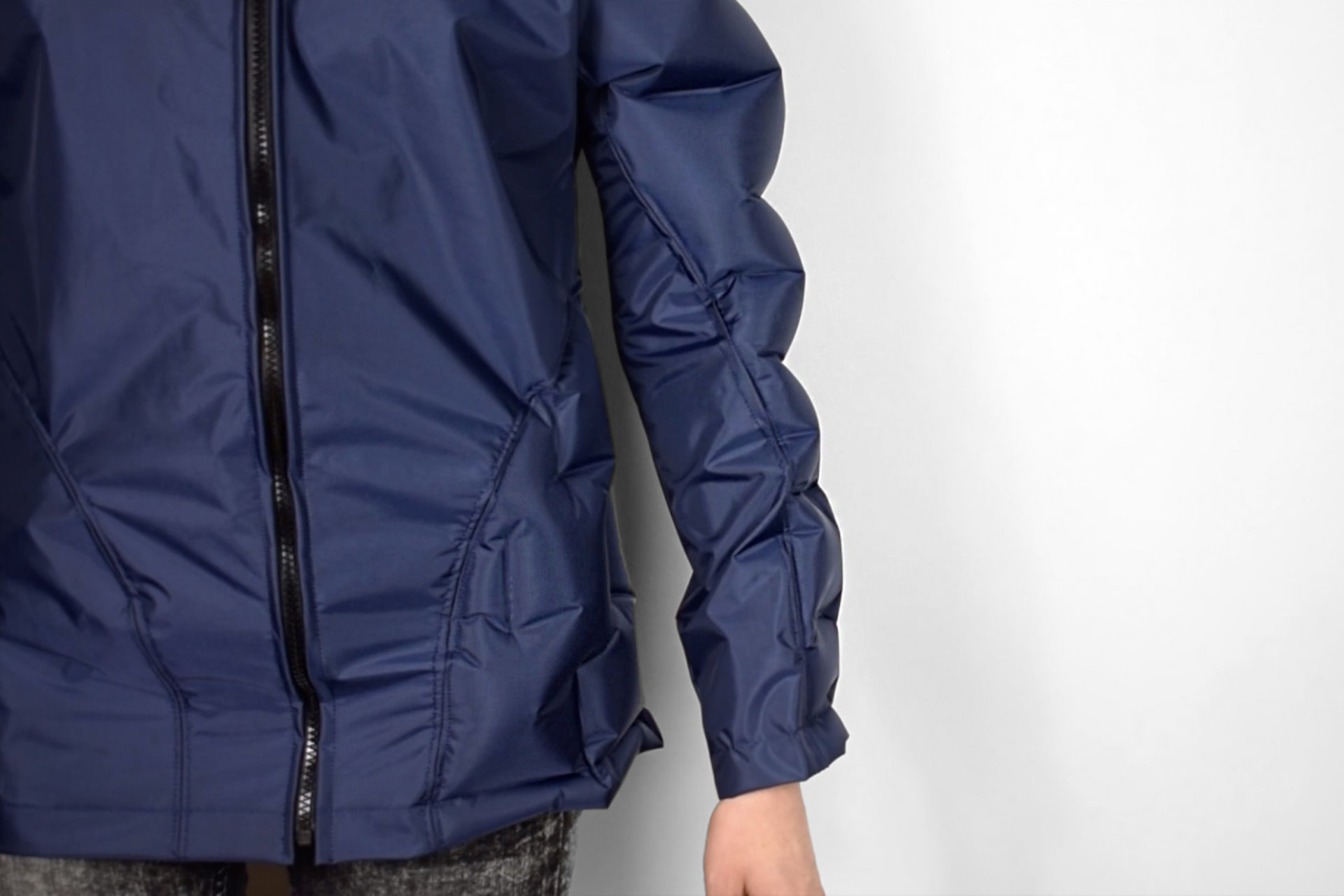

Detail — Pneu-tex discreetly protects those prone to injury from falls. Integrated portions of the jacket inflate to protect the hip and arm.

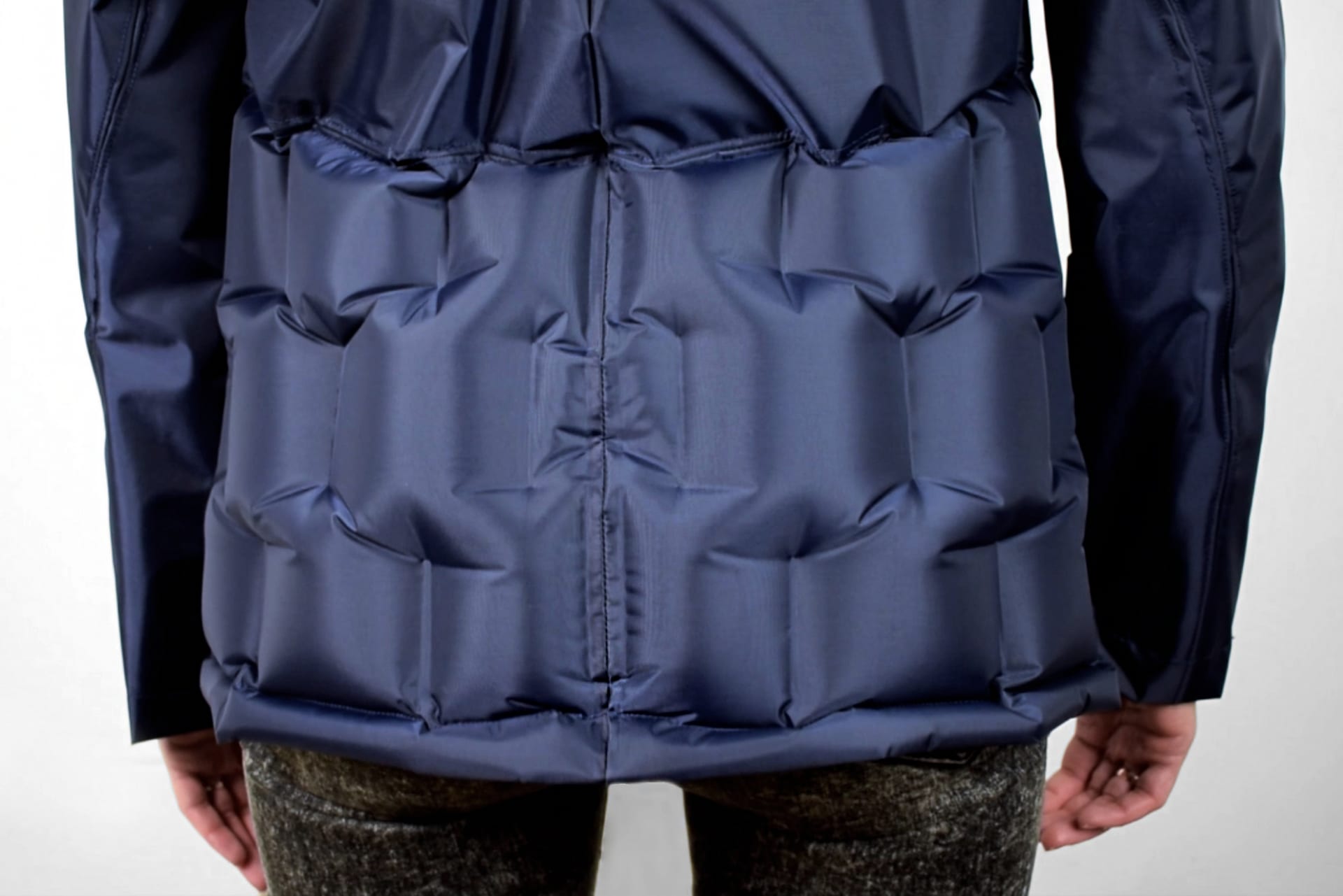

Detail — The lower back is one of the most vulnerable, injury-prone part of the body during the fall.

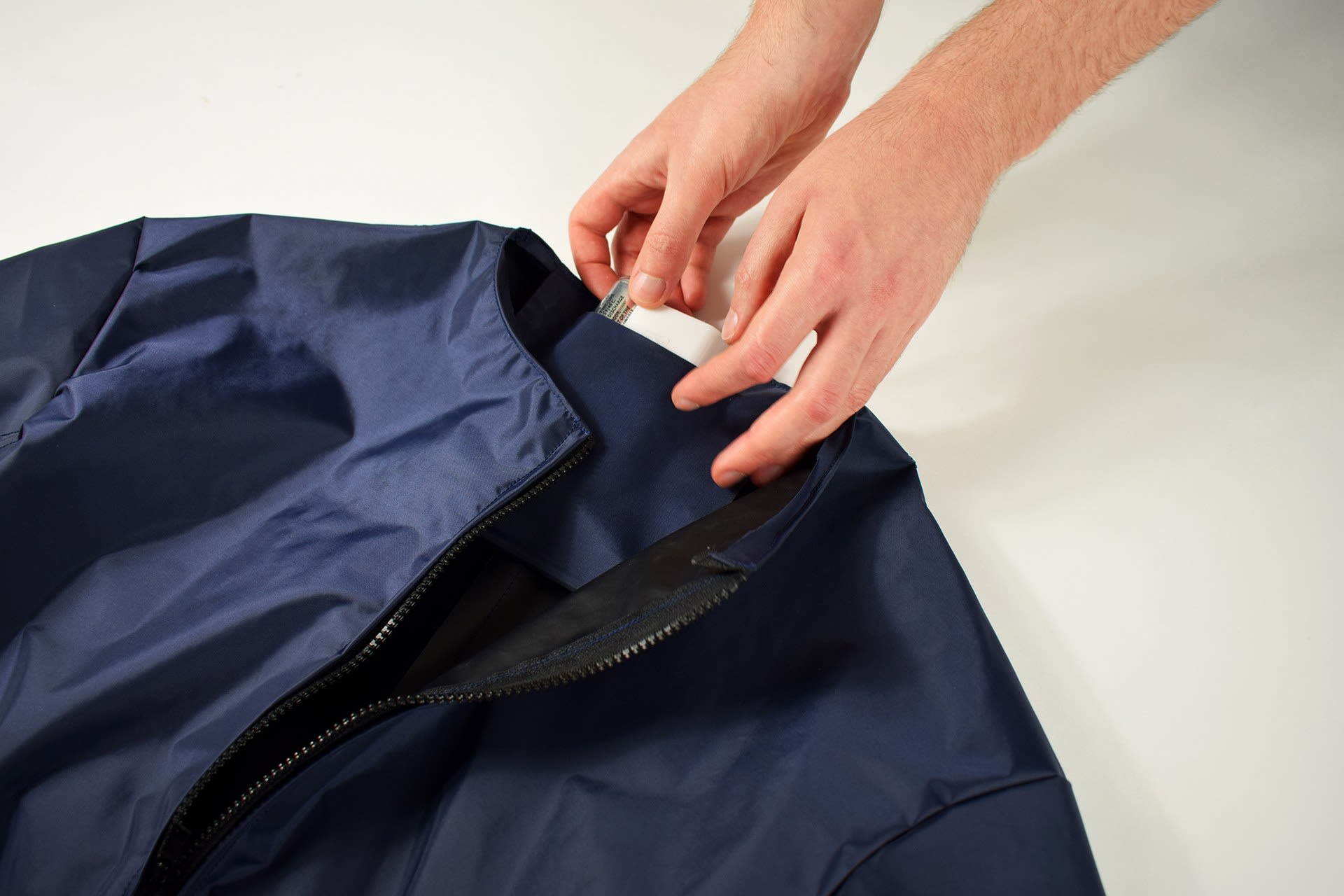

Unit — The inflation and detection mechanisms are housed in a removable unit, located below the neckline.
Detection — A 3-axis accelerometer, gyroscope, and threshold algorithm are used to detect falls, within milliseconds of detection, the smart jacket inflates to cushion the impact, preventing injuries.
Products designed for fall protection should not embarrass the wearer. It should empower one to stay active and confident. Pneu-tex is functional and appealing, ensuring your safety with discretion.

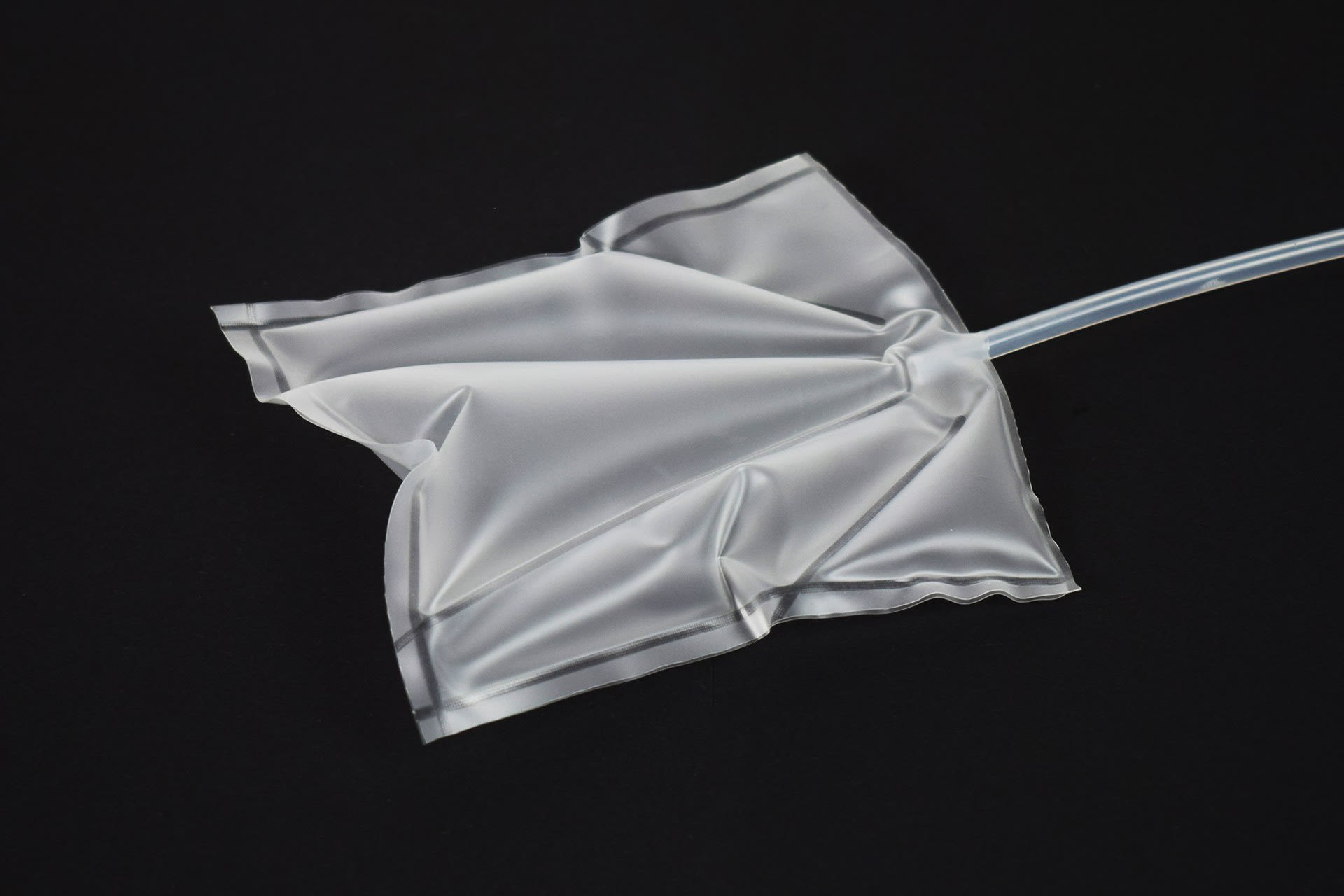

TPU Study — The flexibility of an inflated TPU sample.

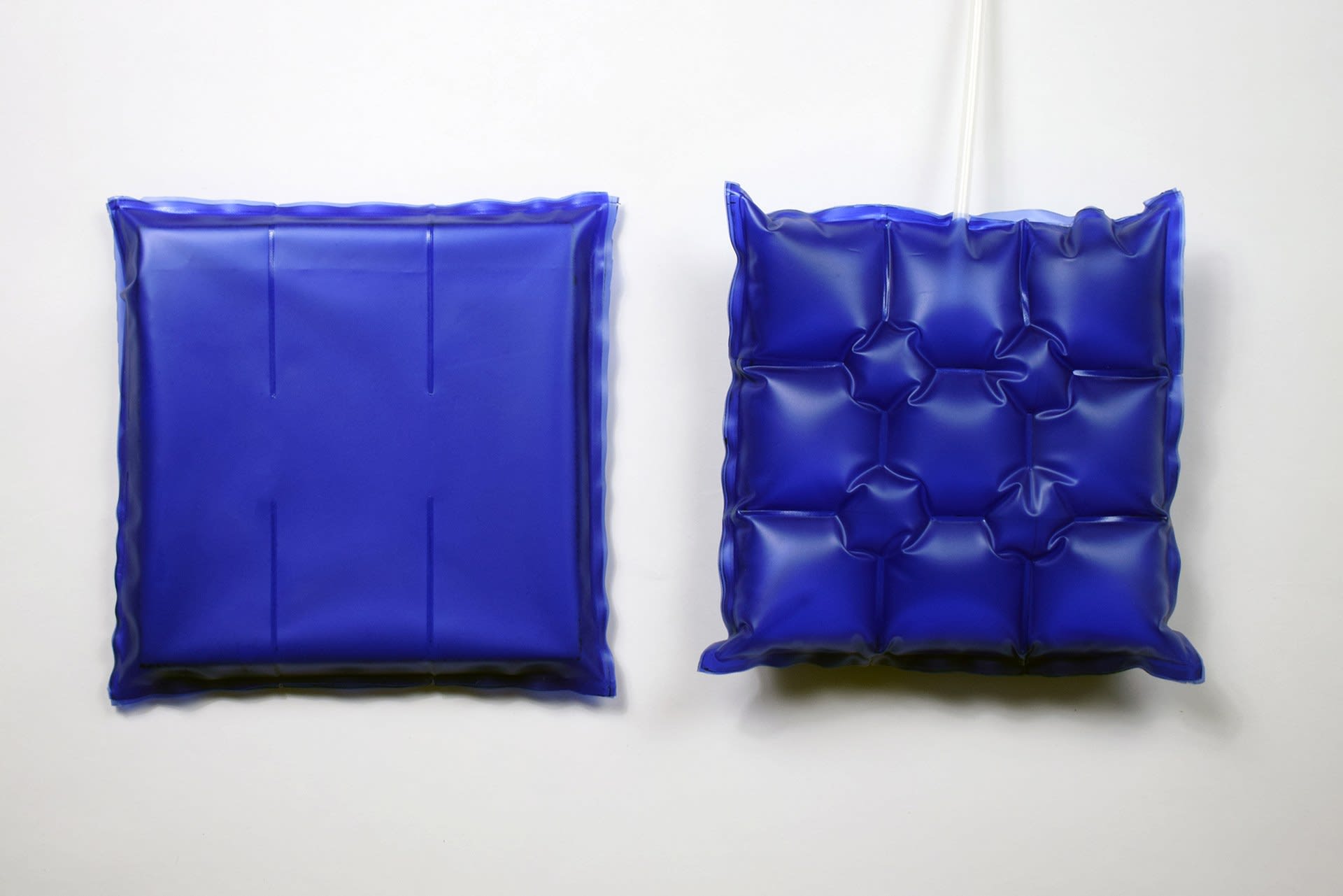

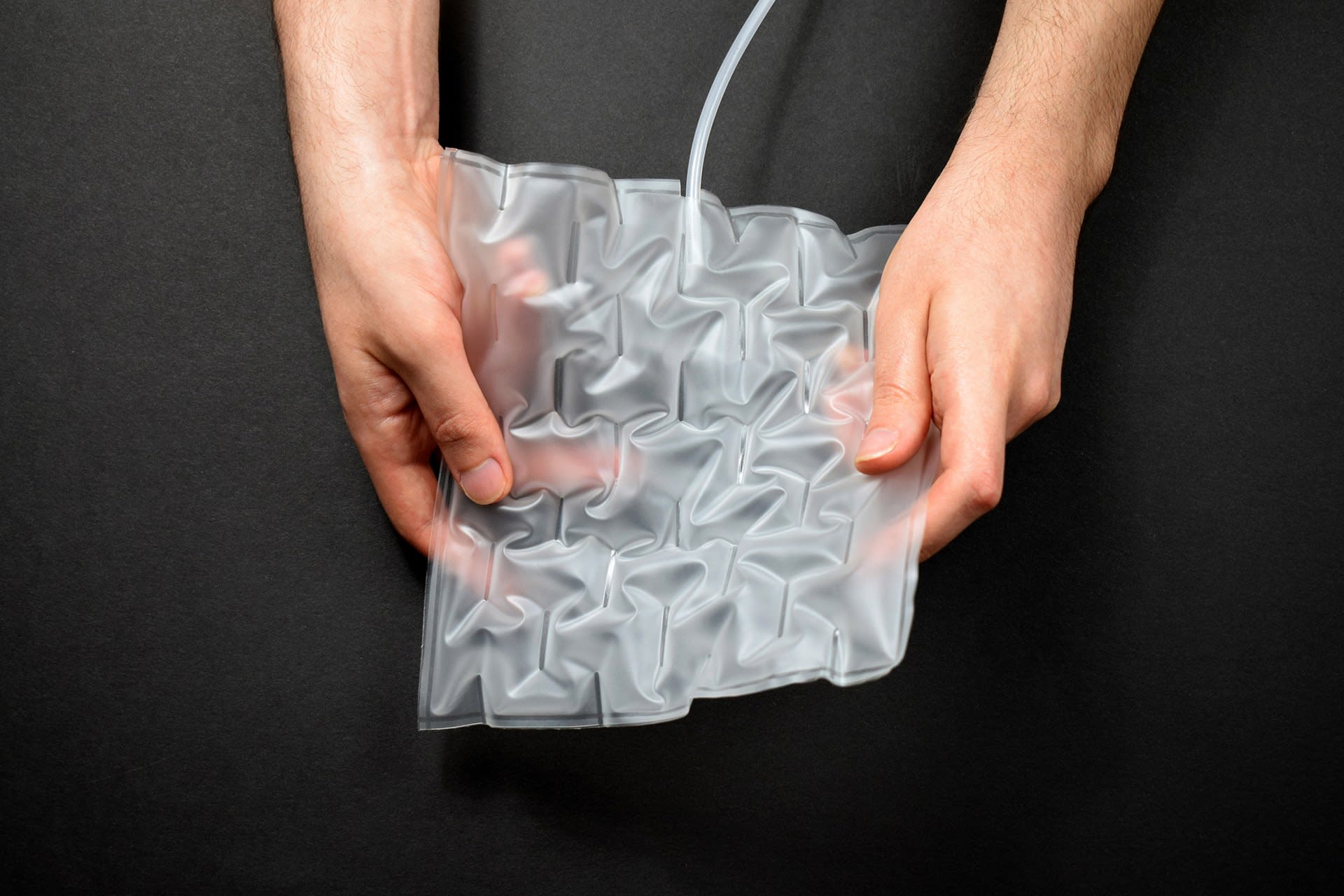

TPU Study — Varied seal lines manipulate the volume of air in each cavity.

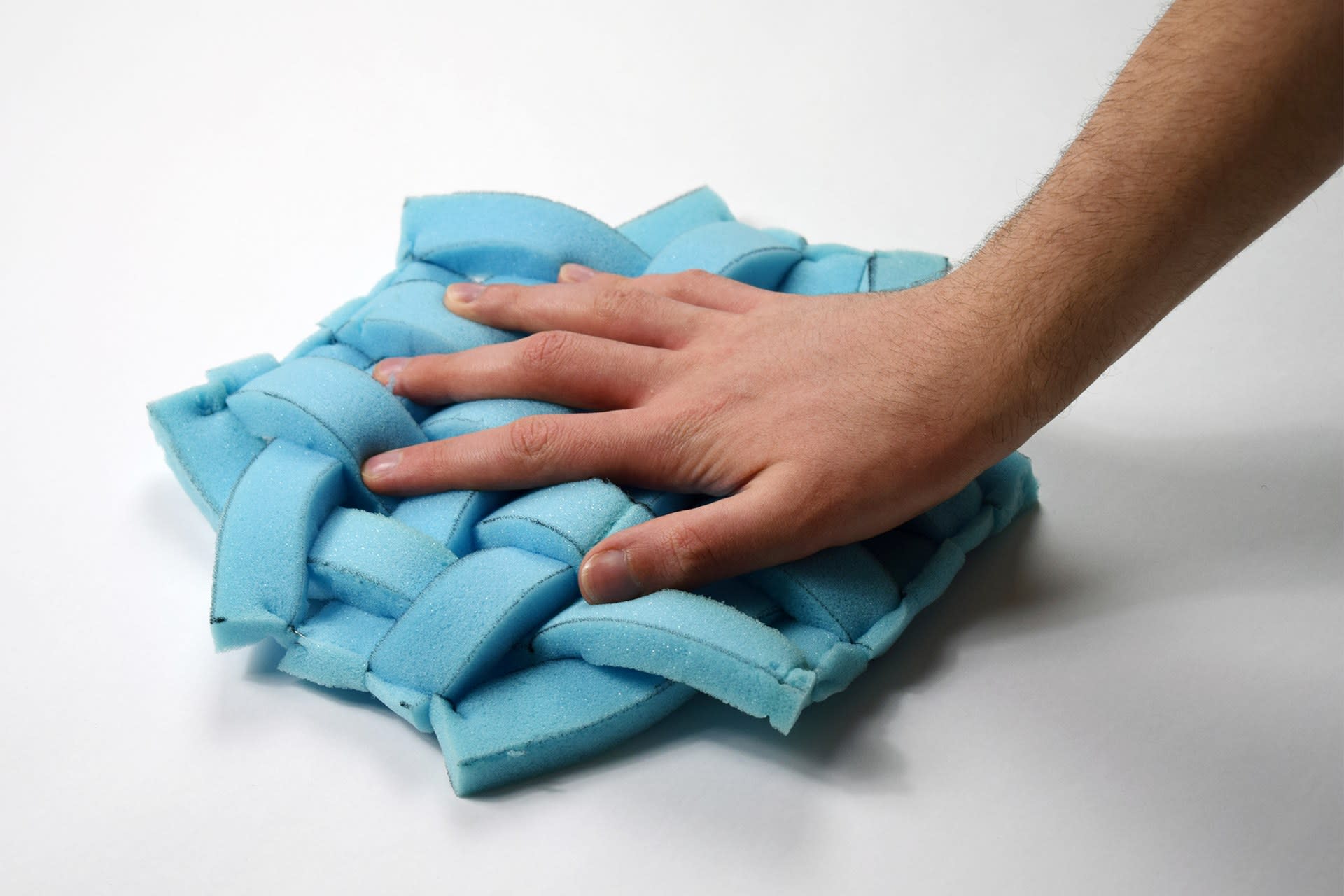

Foam Study — Woven textile foam study.

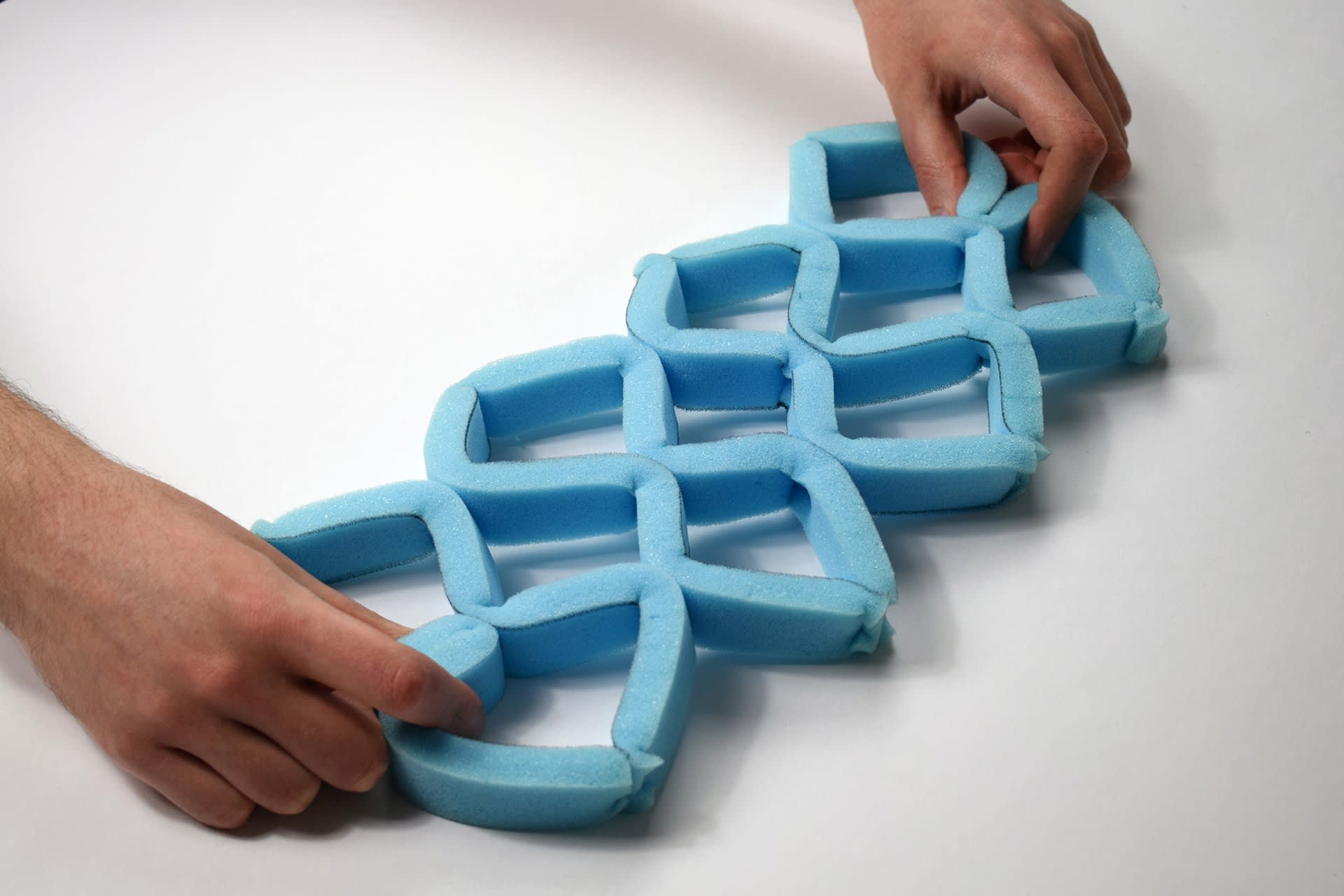

Foam Study — Flexible grid structure foam study.

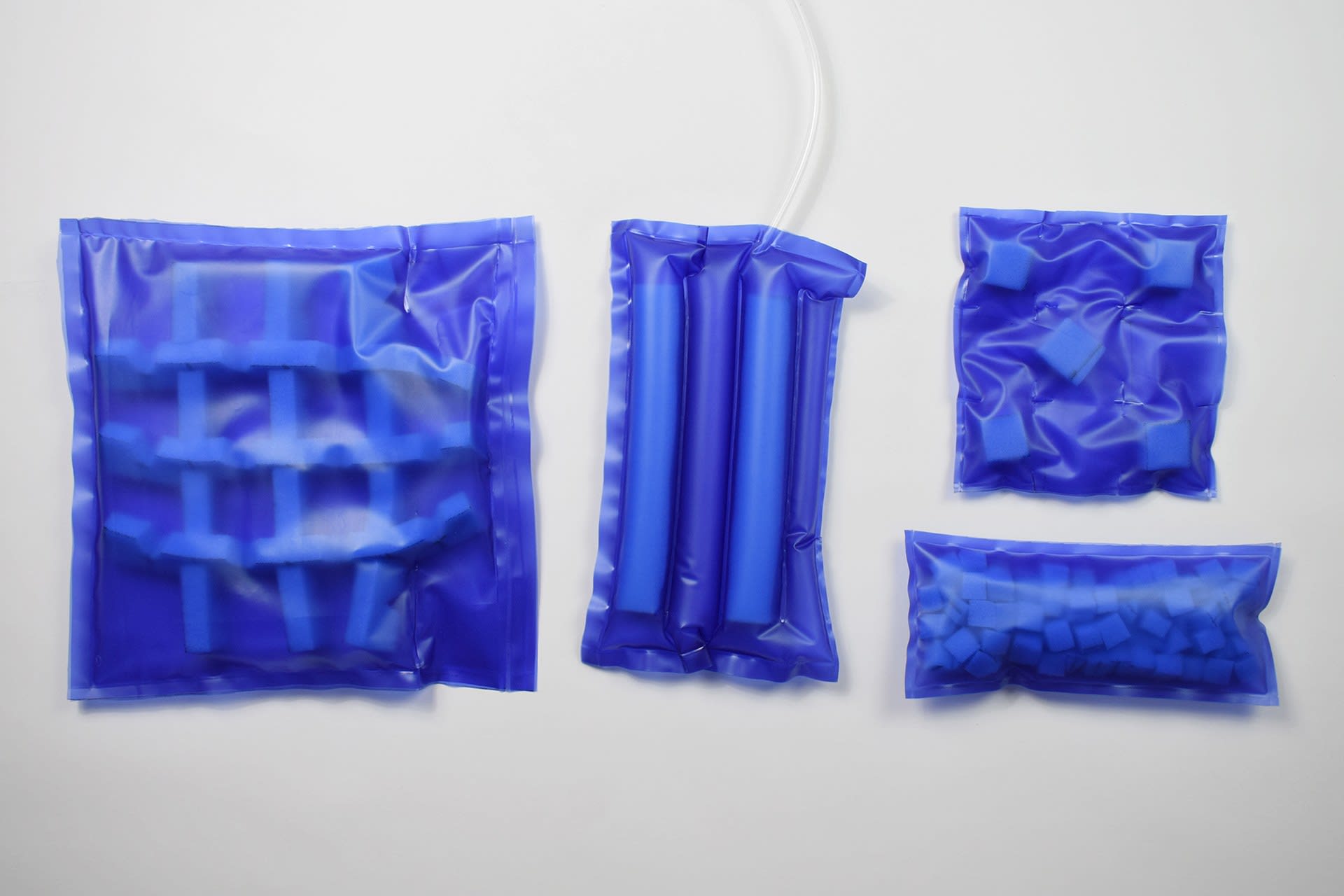

Foam & TPU — Embedded foam and TPU studies.
Foam & TPU — Layered foam and TPU studies.
Nylon & TPU — Nylon coated with TPU inflated sample.

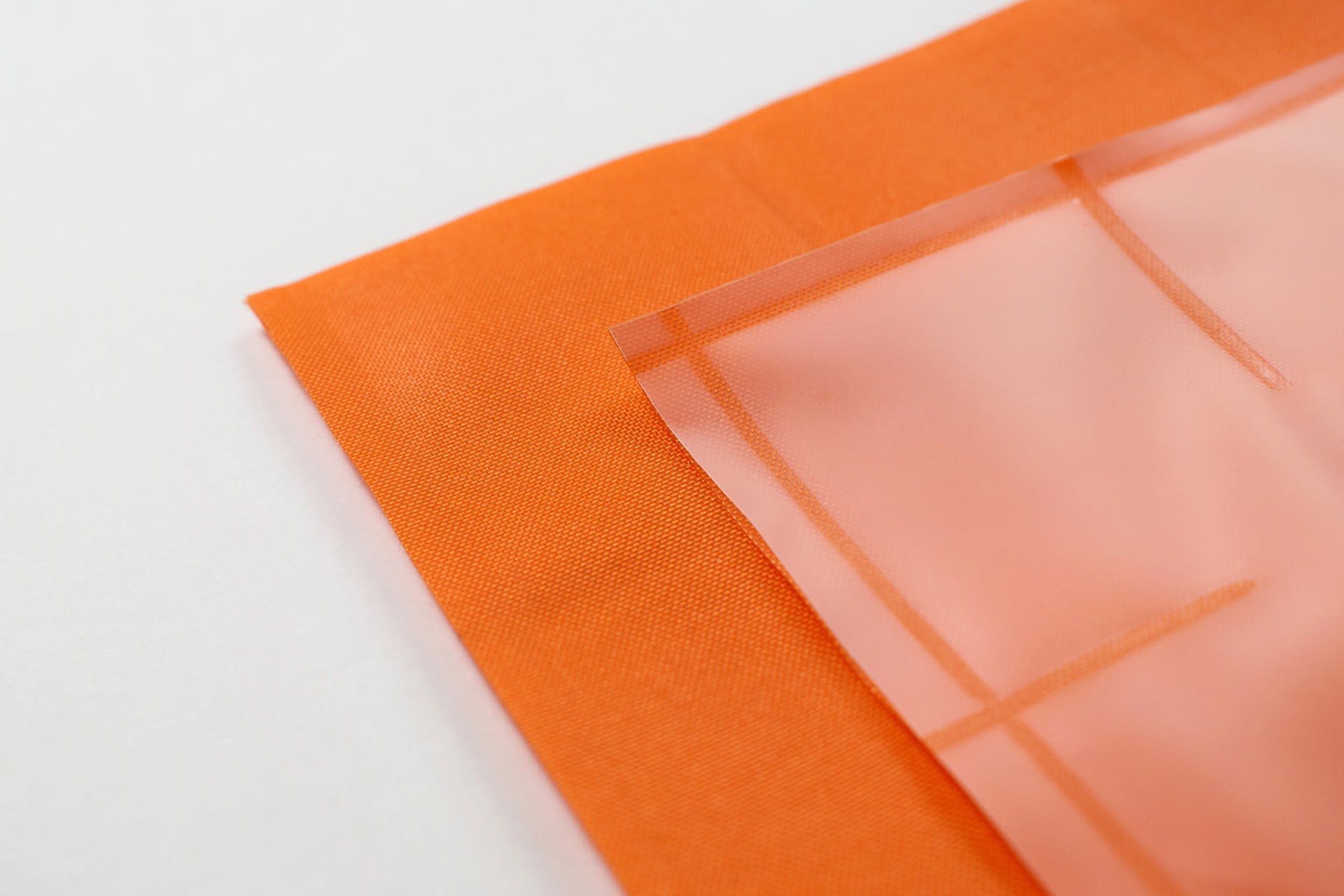

Nylon & TPU — Detail of heat-sealed fabric.
Materials explored range from Thermoplastic Polyurethane (TPU), Foam, Nylon and composites of each material. By varying the seal lines of the TPU studies, I was able to control the geometry and the directionality of inflation, manipulating the volume of air in each cavity. Foam has the capability to absorb impact. Inspired by woven textiles, I experimented with changing the composition and geometry to increase the foam’s firmness and flexibility. TPU coated Nylon is a heat sealable fabric that is waterproof, has high abrasion resistance and elasticity. Combinations of these base materials created composites of varying rigidity and appearance.
Due to the lack of access to testing facilities, most observations have remained qualitative. Standard practice would require a drop weight tower to simulate a fall that directly impacts the hips and a force plate at the base to measure the impact force. Inflation is effective in dissipating the force of impact. A study comparing commercial foam and inflatable hip protection showed that inflatables can reduce peak impact forces by up to 85%, to about 1000N, below the proposed hip fracture threshold of 2100N.
