RS1: The Lithium Triangle
Kangsu Kong
Kangsu Kong was a landscape architecture designer before entering Royal College of Art in 2019. He got his master’s degree of Landscape Architecture in Nanjing Forestry University in China from 2013-2015. After graduation, he worked as a designer in Jiangsu Branch of China Academy of Building Research Co.,LTD, and now is working as the deputy director of Landscape Institute. His main research direction is rural and municipal landscape. In 2019, he got the full scholarship from the Ng Teng Fong Charitable Foundation Scholarship and began to study the master degree of Environmental Architecture in Royal College of Art.
He was in MA Environmental Architecture Studio – Lithium Triangle Group during RCA study in 2019-2021, which focused on lithium mining extraction there. He researched environmental changes and lithium-brine extraction’s environmental impacts in Huatacondo and Tulor-Beter in Chile at first term. Then in term two, he participated in a field trip in Guatacondo and Salar de Atacama in Chile to communicate with local people through interviews and try to understand the topography and environmental features through landscape recording. After the field trip to Chile, he worked as the group lead to do the environmental analysis report of Guatacondo and Tulor Beter for the local communities, which was based on the time-series research of environmental parameters. And he also designed the sustainable tourist routes for Tulor Beter, which was considered as one of local communities’ main concerned issues.
and facilitate a global space that focuses on water issues related to lithium mining and help to protect local communities’ water rights.

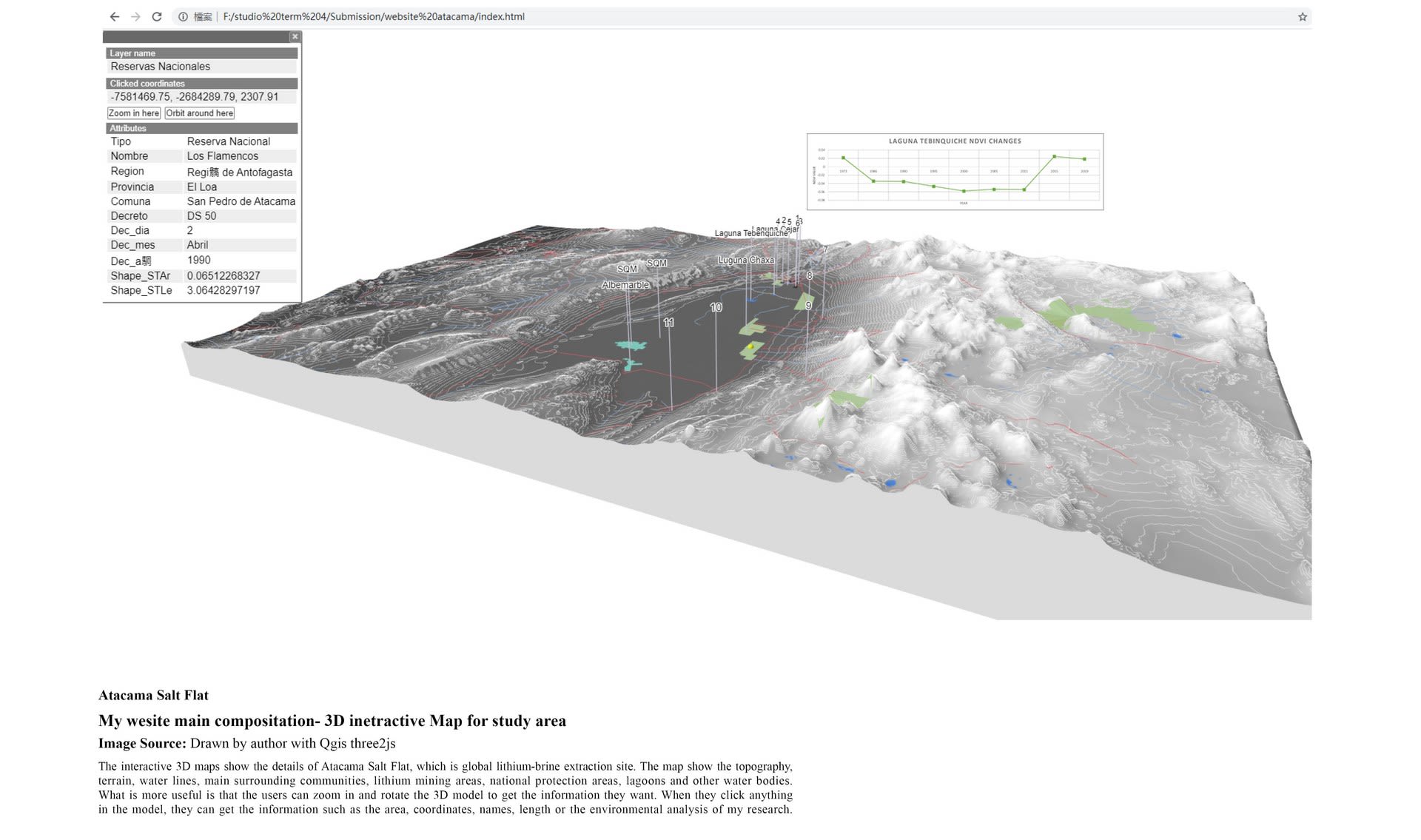

Case study of Atacama Salt Flat- Chile — The website page (https://kangsukong.wixsite.com/website/copy-of-atacama-salt-flat) shows the 3D interactive map, which contains the basic information of the case study topography, terrain, water lines, main surrounding communities, lithium mining areas, national protection areas, lagoons and other water bodies. Moreover, the page shows the video of the site’s mining expansions and my time-series landsat analysis-NDWI which shows the water content changes over the past 45 years (1975-2019).
Case study of Olaroz Salt Flat-Argentina — The website page shows the 3D interactive map of Olaroz Plateau (https://kangsukong.wixsite.com/website/copy-of-atacama-salt-flat-1), which contains the basic information of the case study topography, terrain, water lines, main surrounding communities, lithium mining areas, national protection areas, lagoons and other water bodies. Moreover, the page shows the video of the site’s mining expansions and my time-series landsat analysis-NDWI which shows the water content changes over the past 9 years (2012-2020).
Case study of Qaidam plateau- China — The website page (https://kangsukong.wixsite.com/website/copy-of-atacama-salt-flat-2) shows the 3D interactive map, which contains the basic information of the case study topography, terrain, water lines, main surrounding communities, lithium mining areas, national protection areas, lagoons and other water bodies. Moreover, the page shows the video of the site’s mining expansions and my time-series landsat analysis-NDWI which shows the water content changes over the past 35 years (1985-2020).
The purpose of the case study is to assess the environmental impacts, especially on water and its possible correlation with lithium mining expansions from a global perspective with the analysis of three representative cases: Salar de Atacama of Chile, Salar de Olaroz of Argentina and Qaidam plateau of China, three of the world’s largest and famous lithium brine extraction sites. Using Landsat data and calculated images in Qgis, I investigate and study areas that are close to the lithium extraction areas such as lagoons, alluvial fan and villages to have the horizontal analysis in each country itself (1) use environmental parameters-NDWI (Normalized Differenced Water Index) to determine water areas and its pixel-based time-series trend over time; (2) use environmental parameters-NDVI (Normalized Differenced Vegetation Index) to determine vegetation areas and its pixel-based time-series trend over time; (3) perform regression analysis between lithium mining activities and water and vegetation content changes in the period of lithium brine extraction; and (4) use NDWI changes of study areas in Chile and China to do regression-model analysis with the variable-mining areas change. Then, this study has the vertical comparison that means comparisons between different countries to see the NDWI and NDVI changes to find the similar laws. The horizontal comparison shows the significant NDWI degradation over the lithium extraction period in each country (1) decreasing trend of NDWI at most of time; (2) NDVI changes irregularly, sometimes abnormal increased and sometimes decreased; (3) the continuous expansion of lithium mining areas has strong negative correlations with NDWI in each country, and the closer study area is more affected by the mining activities. The vertical comparison shows that (1) all countries show the decrease trend of NDWI at different extent; (2) NDVI changed irregularly but all countries show an increasing trend in recent years, which may be the reason that the amount of some kinds of the vegetations can increase due to the water decreases; (3) NDWI regression models of lagoons in China show a stronger regressive relationship than in Atacama salt flats of Chile.
Medium:
Mapping, 3D model, landsat image, video, photograph

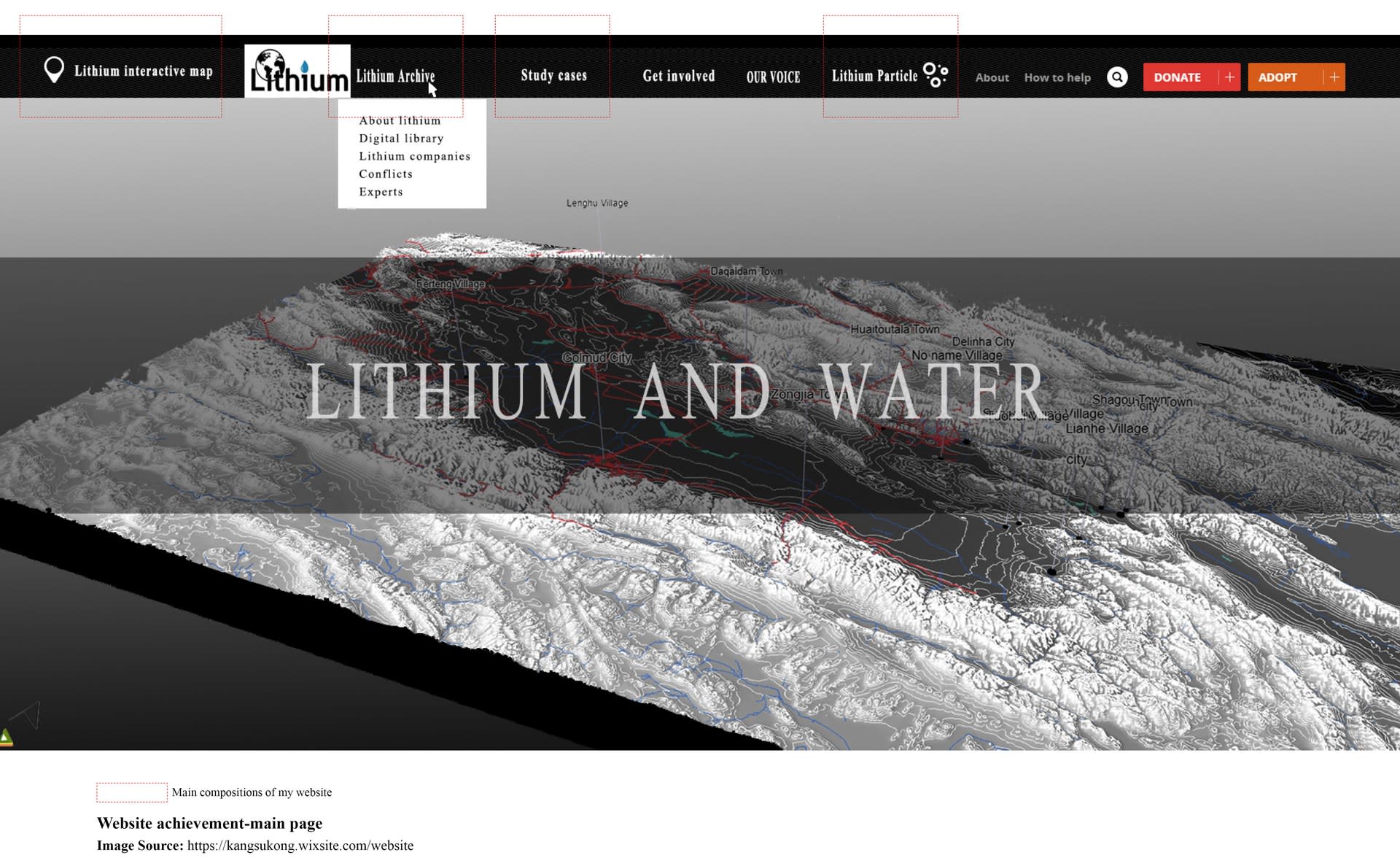

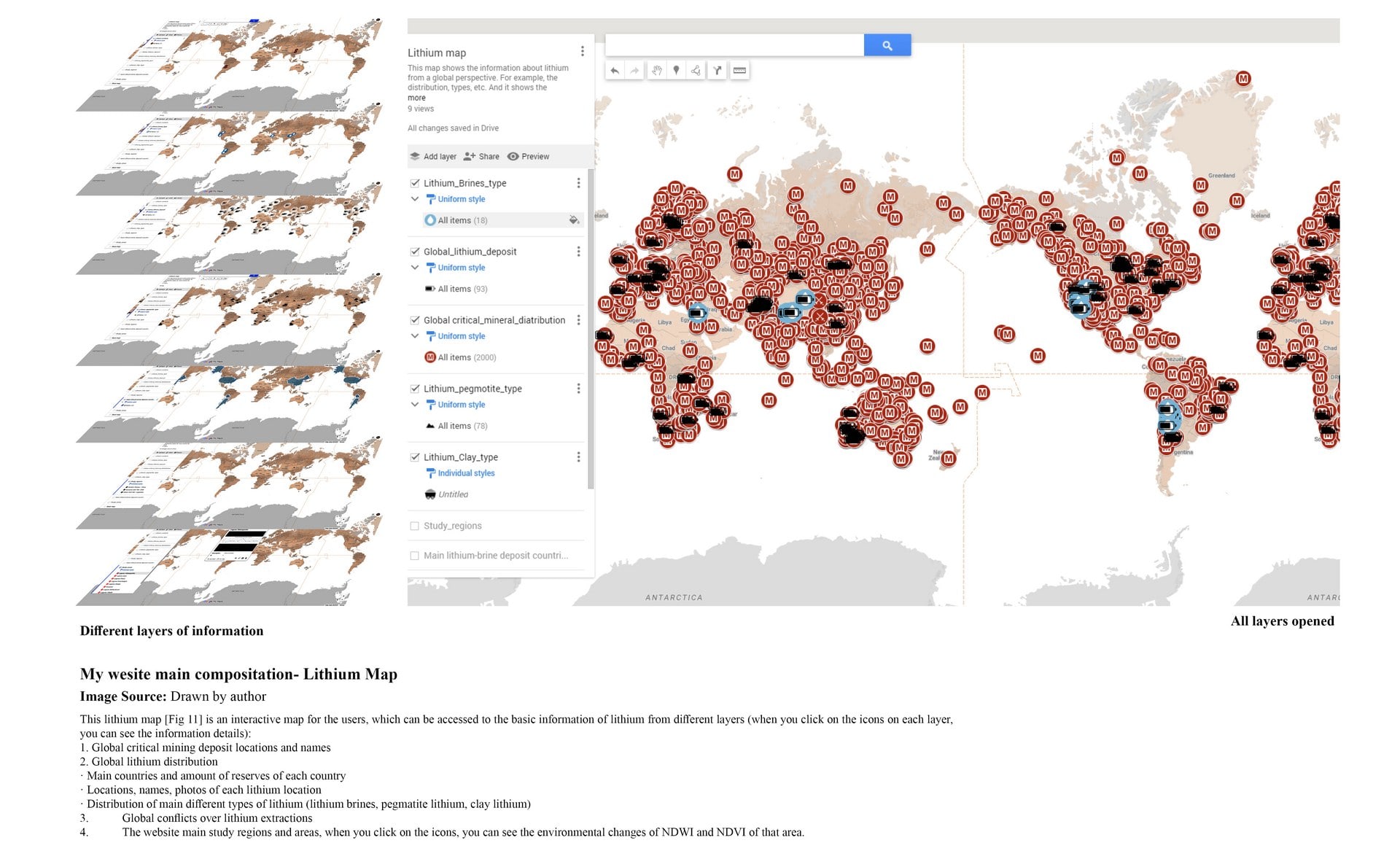

Lithium interactive map — This image shows the main page and frame of the lithium map which contains lots of layers containing different information. The users can check the global information of lithium and we can help local communities to upload the water issues caused by the lithium-brine extraction. And the researchers can upload their related research on it.
This lithium map is an interactive map for the users, which can be accessed to the basic information of lithium from different layers (when you click on the icons on each layer, you can see the information details):
1. Global critical mining deposit locations and names
2. Global lithium distribution
· Main countries and amount of reserves of each country
· Locations, names, photos of each lithium location
· Distribution of main different types of lithium (lithium brines, pegmatite lithium, clay lithium)
3. Global conflicts over lithium extractions
4. The website main study regions and areas, when you click on the icons, you can see the environmental changes of NDWI and NDVI of that area.
1. Global critical mining deposit locations and names
2. Global lithium distribution
· Main countries and amount of reserves of each country
· Locations, names, photos of each lithium location
· Distribution of main different types of lithium (lithium brines, pegmatite lithium, clay lithium)
3. Global conflicts over lithium extractions
4. The website main study regions and areas, when you click on the icons, you can see the environmental changes of NDWI and NDVI of that area.
Medium:
Website, code, interactive platform

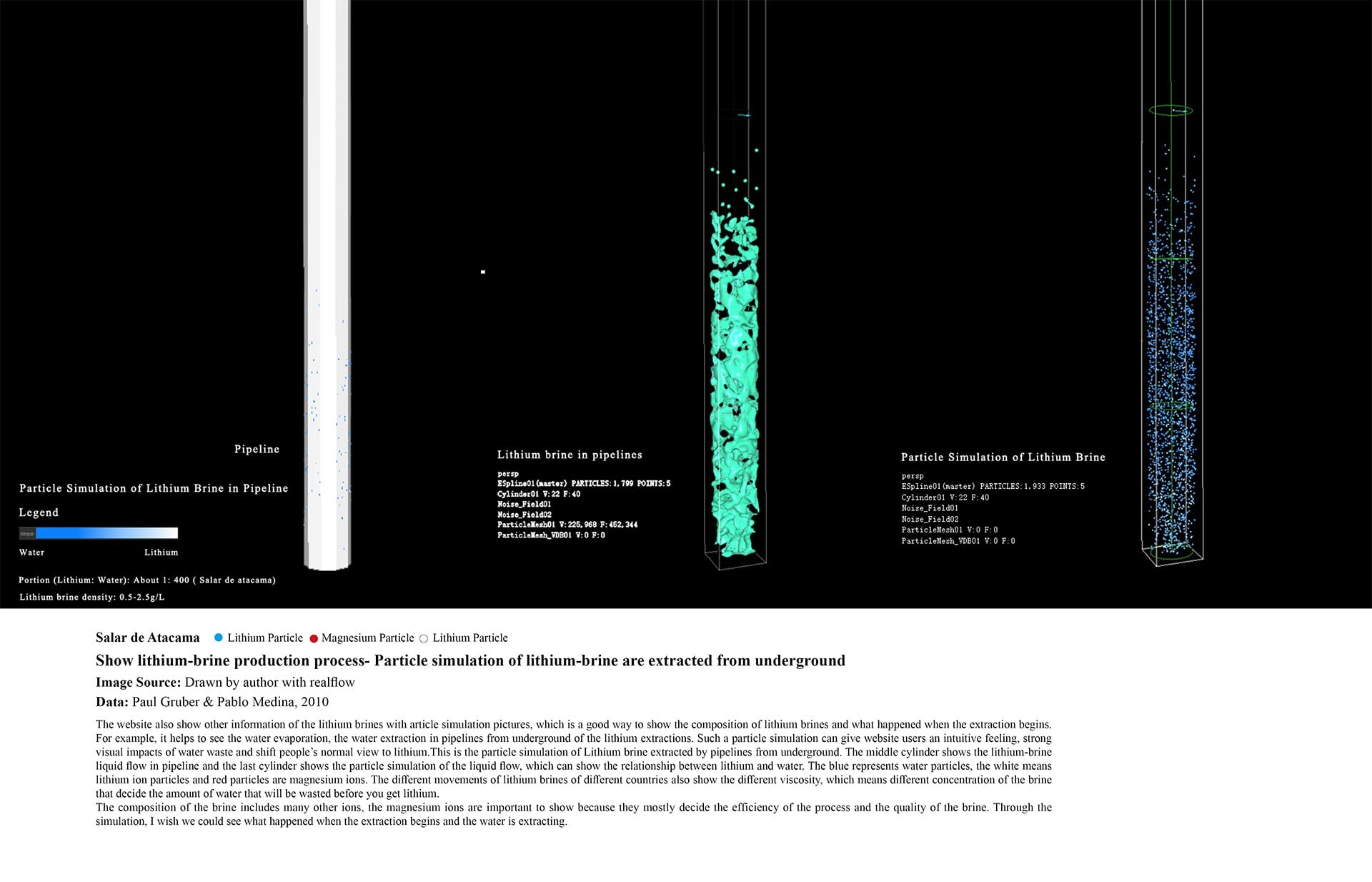

Particle simulation of lithium-brine extraction - concept — The particle simulation of lithium extraction helps to see the water evaporation, the water extraction in pipelines from underground of the lithium extractions. Such a particle simulation can give website users an intuitive feeling, strong visual impacts of water waste and shift people’s normal view to lithium. This is the particle simulation of lithium brine extracted by pipelines from underground. The middle cylinder shows the lithium-brine liquid flow in pipeline and the last cylinder shows the particle simulation of the liquid flow, which can show the relationship between lithium and water. The blue represents water particles, the white means lithium ion particles and red particles are magnesium ions. The different movements of lithium brines of different countries also show the different viscosity, which means different concentrations of the brine that decide the amount of water that will be wasted before you get lithium. The composition of the brine includes many other ions, the magnesium ions are important to show because they mostly decide the efficiency of the process and the quality of the brine. Through the simulation, I wish we could see what happens when the extraction begins and the water is extracting.

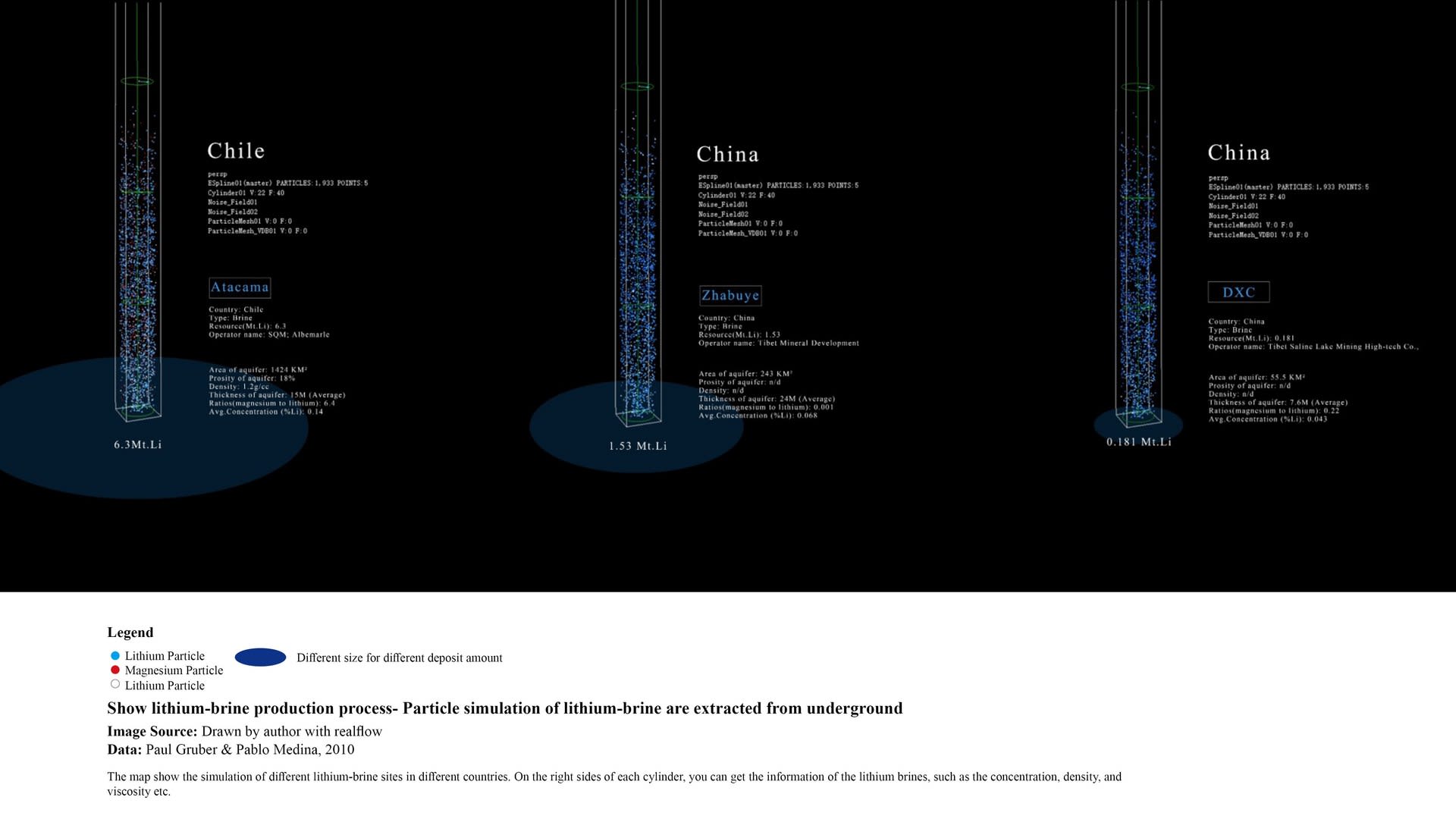

Particle simulation of lithium extraction - different countries — This image shows the particle simulation of lithium extraction of global different countries (Chile, China） and the basic information of the lithium brine.

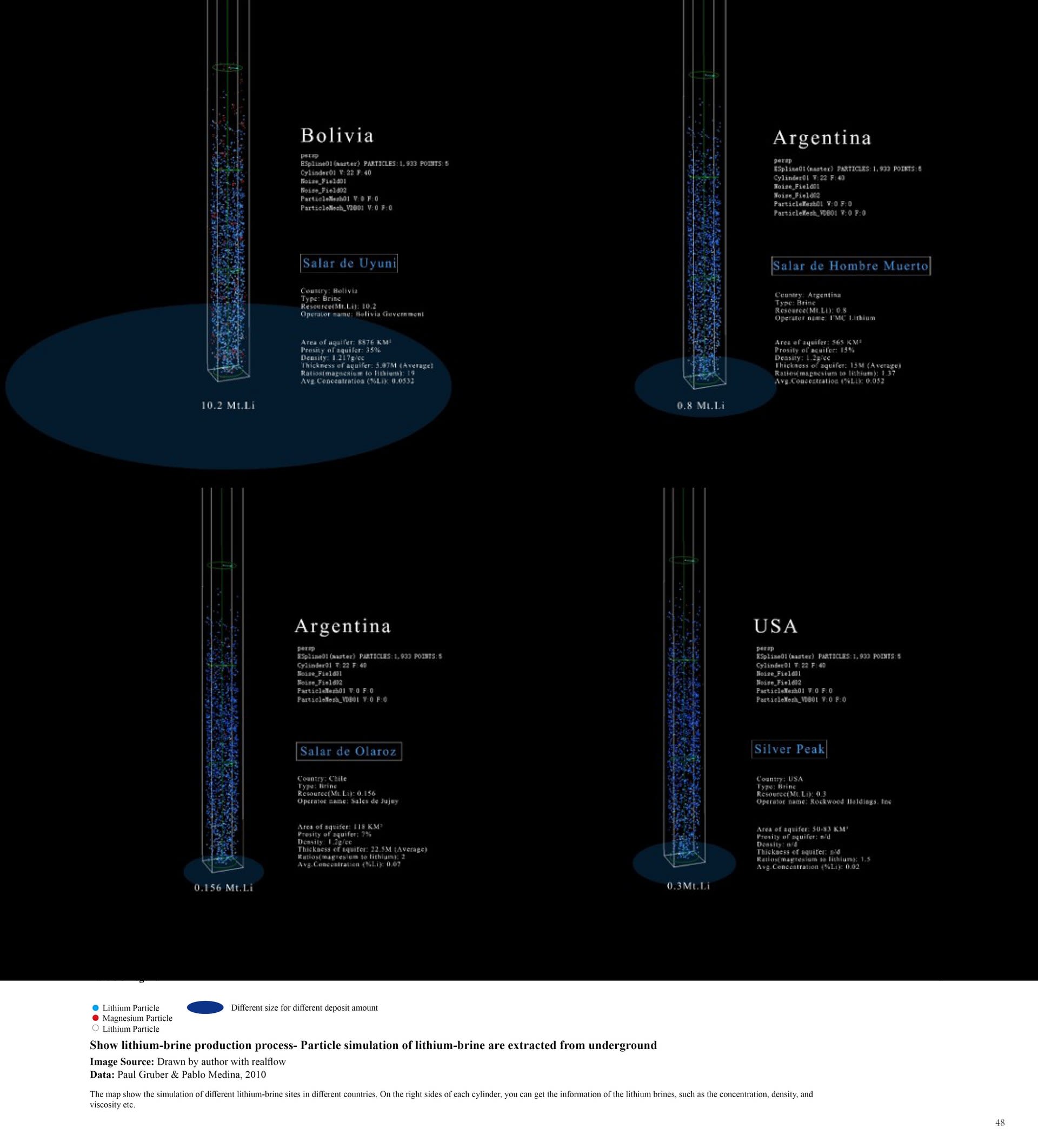

Particle simulation of lithium extraction - different countries — This image shows the particle simulation of lithium extraction of global different countries (Bolivia, Argentina，USA） and the basic information of the lithium brine.
Particle simulation of lithium evaporation — The video shows the particle simulations of the evaporation process of four lithium sites of different countries and the water waste calculation of the lithium brine of different countries, which could attract users’ attention and let people see the water particles are being evaporated to the air very clearly. Different speeds of particles of different countries means different evaporation rates which are also very important for the lithium-brine production. Next to the simulations, I also show the estimated water evaporation of each study area to show the water waste directly.
Particle simulations of the lithium-brine extraction is a good way to show the composition, feature of lithium brines such as the concentration, density, porosity, etc, and what happens when the extraction begins. For example, it helps to see the water evaporation, the water extraction in pipelines from underground of the lithium extractions and water evaporation. Such a particle simulation can give website users an intuitive feeling, strong visual impacts of water waste and shift people’s normal view to lithium.
Medium:
Video, pictures![[untitled]](https://res.cloudinary.com/rca2020/image/upload/w_1920,f_auto,q_auto/v1607689880/gatsby-cloudinary/5fd33182620777544e3064fa-467392-resize-1920-2560)
![[untitled]](https://res.cloudinary.com/rca2020/image/upload/w_1920,f_auto,q_auto/v1607689880/gatsby-cloudinary/5fd33182620777544e3064fa-569569-resize-1920-2560)

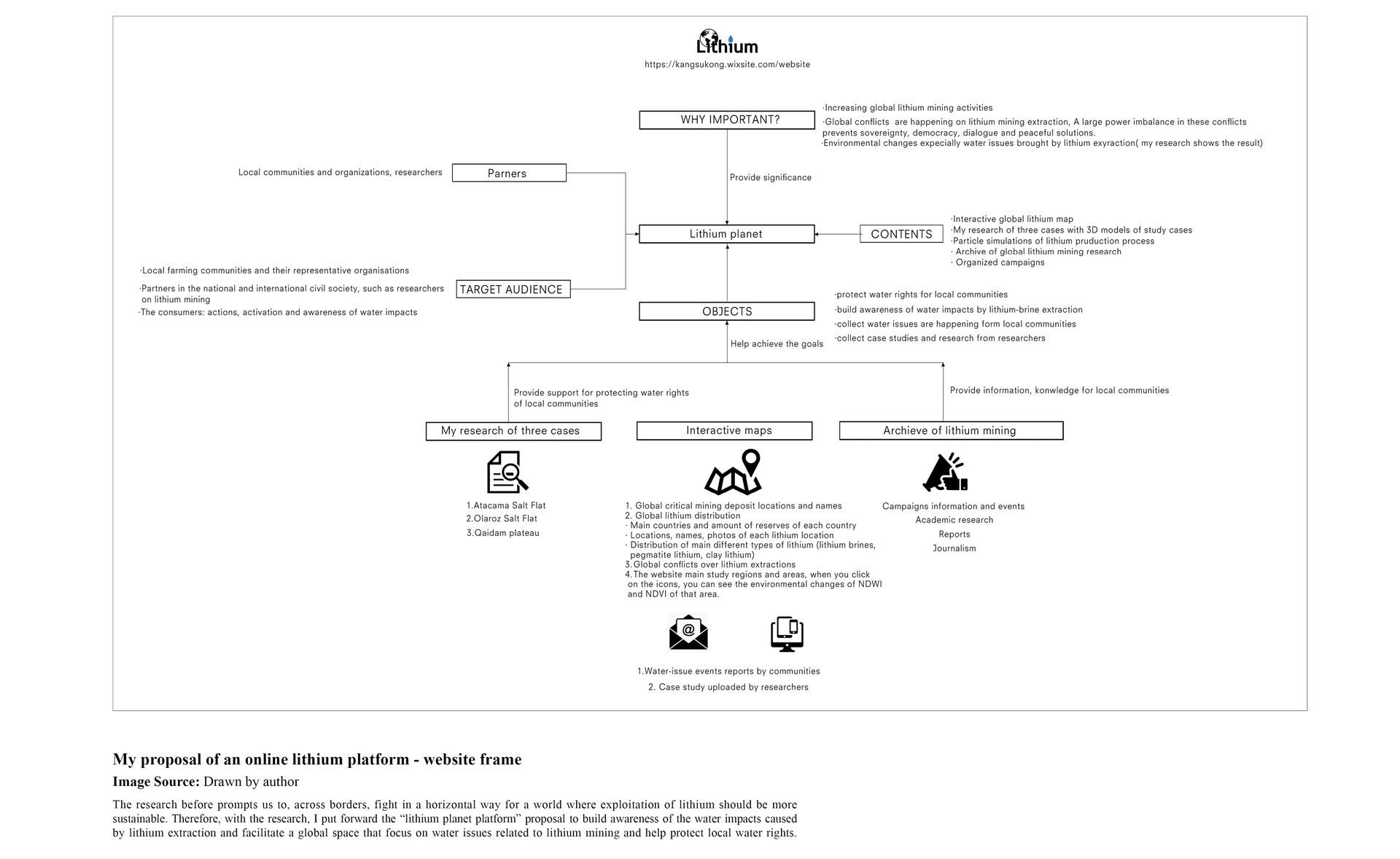

According to the research, water issues brought by lithium-brine extraction are happening globally. Therefore, I propose to develop a Lithium digital platform which is shown as a website. Such platform could collaborate on awareness, networking, research, lobbying and/or exchange. In this way, it can play a pioneering role in raising awareness of the water impacts caused by lithium extraction and facilitate a global space that focus on water issues related to lithium mining and help protect local water rights. It accelerates thinking about the lithium mining extraction growing problem and promotes the consideration of degrowth.
